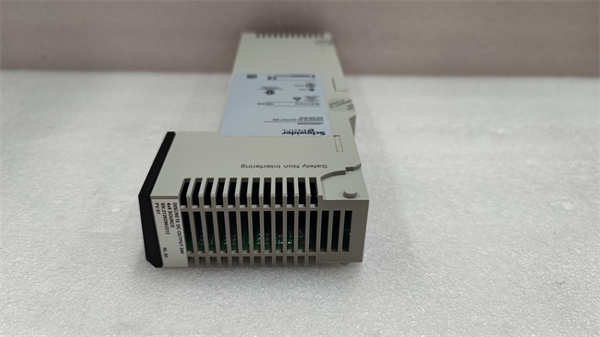

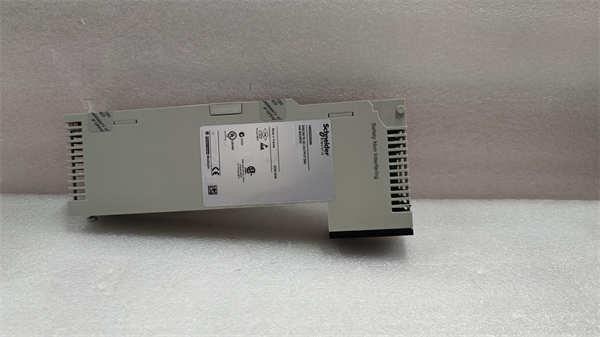

140DDO35300

产品说明

施耐德140DDO35300模块是专为Modicon Quantum系列PLC设计的离散量输出模块，主要用于控制外部设备如继电器、电磁阀等，实现自动化控制。

产品参数

型号:140DDO35300

类型:离散量输出模块

通道数:32个数字量输出通道

输出类型:固态继电器

输出电压范围:24VDC

输出电流:每通道最大4A，累计可达16A

浪涌电流:每组1周期内45A，每组2周期内25A，每组3周期内30A

响应时间:<=0.5ms在0状态到1状态，<=0.5ms在1状态到0状态

保护类型:内部通过RC滤波器和5A熔断器

产品规格

该模块具有高可靠性、长寿命等特点，并采用优质固态继电器技术，确保长期稳定运行。此外，它还支持多种输出类型，例如继电器和晶体管。

系列

施耐德140DDO35300属于Modicon Quantum系列PLC模块。

特征

高可靠性:使用优质固态继电器，确保长期稳定运行

高效率:低功耗，发热量小

易于使用:直观的接线方式和简单的配置

作用与用途

该模块用于将PLC系统的数字信号转换为开关信号，驱动执行器件工作，如继电器、接触器等开关器件。它能够控制外部设备的通断状态，例如继电器、电磁阀、指示灯等。

应用领域

施耐德140DDO35300广泛应用于工业自动化过程控制领域，包括但不限于材料处理、包装机械、纺织机械、物流系统以及暖通空调等领域。

Product Description:Schneider 140DDO35300 is a discrete output module designed for Modicon Quantum series PLCs,mainly used to control external devices such as relays and solenoid valves,achieving automation control.

Product Parameters:Model:140DDO35300;Type:Discrete Output Module;Channels:32 digital output channels;Output Type:Solid-State Relays;Output Voltage Range:24VDC;Output Current:Max 4A per channel,cumulative up to 16A;Surge Current:45A per group in one cycle,25A per group in two cycles,30A per group in three cycles;Response Time:<=0.5ms from 0 to 1 state,<=0.5ms from 1 to 0 state;Protection Type:Internal through RC filter and 5A fuse.

Product Specifications:The module has high reliability and long lifespan due to the use of high-quality solid-state relays,ensuring stable operation over time.

Series:belongs to Schneider Electric’s Modicon Quantum series PLC modules.

Features:High reliability,high efficiency(low power consumption,low heat generation),easy to use(intuitive wiring and simple configuration).

Function and Application:This module converts PLC system digital signals into switching signals to drive execution devices such as relays and contactors.It can control the on-off states of external devices like relays,solenoid valves,and indicators.

Application Fields:Widely used in industrial automation process control fields,including material handling,packaging machinery,textile machinery,logistics systems,HVAC systems,and other ODM applications.
